Ymodem protocol definitions and configuration. More...

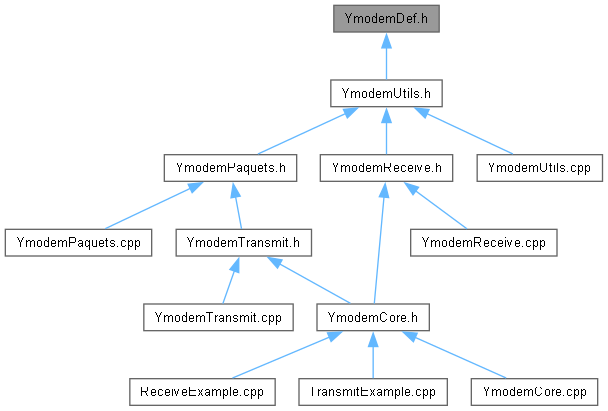

This graph shows which files directly or indirectly include this file:

Macros
#define	EX_UART_NUM UART_NUM_0

#define	BUF_SIZE (1080)

#define	YMODEM_LED_ACT 0

#define	YMODEM_LED_ACT_ON 1

#define	PACKET_SEQNO_INDEX (1)

#define	PACKET_SEQNO_COMP_INDEX (2)

#define	PACKET_HEADER (3)

#define	PACKET_TRAILER (2)

#define	PACKET_OVERHEAD (PACKET_HEADER + PACKET_TRAILER)

#define	PACKET_SIZE (128)

#define	PACKET_1K_SIZE (1024)

#define	FILE_SIZE_LENGTH (16)

#define	SOH (0x01)

#define	STX (0x02)

#define	EOT (0x04)

#define	ACK (0x06)

#define	NAK (0x15)

#define	CA (0x18)

#define	CRC16 (0x43)

#define	ABORT1 (0x41)

#define	ABORT2 (0x61)

#define	NAK_TIMEOUT (1000)

#define	MAX_ERRORS (100)

#define	YM_MAX_FILESIZE (10 * 1024 * 1024)

Detailed Description

Ymodem protocol definitions and configuration.

Author: Miguel Ferrer (mferr.nosp@m.er@i.nosp@m.nbiot.nosp@m..es)

Version: 0.1

Date: 2025-01-24

This file contains the definitions and configuration parameters for the Ymodem protocol. These parameters include packet sizes, control characters, timeouts, and other settings used in the Ymodem protocol implementation.

Copyright: Copyright (c) 2025

Definition in file YmodemDef.h.

Macro Definition Documentation

◆ ABORT1

#define ABORT1 (0x41)

'A' == 0x41, abort by sender

Definition at line 44 of file YmodemDef.h.

◆ ABORT2

#define ABORT2 (0x61)

'a' == 0x61, abort by receiver

Definition at line 45 of file YmodemDef.h.

◆ ACK

#define ACK (0x06)

acknowledge

Definition at line 39 of file YmodemDef.h.

◆ BUF_SIZE

#define BUF_SIZE (1080)

UART buffer size

Definition at line 19 of file YmodemDef.h.

◆ CA

#define CA (0x18)

two of these in succession aborts transfer

Definition at line 41 of file YmodemDef.h.

◆ CRC16

#define CRC16 (0x43)

'C' == 0x43, request 16-bit CRC

Definition at line 42 of file YmodemDef.h.

◆ EOT

#define EOT (0x04)

end of transmission

Definition at line 38 of file YmodemDef.h.

◆ EX_UART_NUM

#define EX_UART_NUM UART_NUM_0

UART port number

Definition at line 18 of file YmodemDef.h.

◆ FILE_SIZE_LENGTH

#define FILE_SIZE_LENGTH (16)

File size length

Definition at line 34 of file YmodemDef.h.

◆ MAX_ERRORS

#define MAX_ERRORS (100)

Maximum number of errors allowed

Definition at line 48 of file YmodemDef.h.

◆ NAK

#define NAK (0x15)

negative acknowledge

Definition at line 40 of file YmodemDef.h.

◆ NAK_TIMEOUT

#define NAK_TIMEOUT (1000)

Timeout for NAK response

Definition at line 47 of file YmodemDef.h.

◆ PACKET_1K_SIZE

#define PACKET_1K_SIZE (1024)

Packet 1K data size

Definition at line 33 of file YmodemDef.h.

◆ PACKET_HEADER

#define PACKET_HEADER (3)

Packet header size

Definition at line 29 of file YmodemDef.h.

◆ PACKET_OVERHEAD

#define PACKET_OVERHEAD (PACKET_HEADER + PACKET_TRAILER)

Packet overhead size

Definition at line 31 of file YmodemDef.h.

◆ PACKET_SEQNO_COMP_INDEX

#define PACKET_SEQNO_COMP_INDEX (2)

Packet sequence number complement index

Definition at line 28 of file YmodemDef.h.

◆ PACKET_SEQNO_INDEX

#define PACKET_SEQNO_INDEX (1)

Packet sequence number index

Definition at line 27 of file YmodemDef.h.

◆ PACKET_SIZE

#define PACKET_SIZE (128)

Packet data size

Definition at line 32 of file YmodemDef.h.

◆ PACKET_TRAILER

#define PACKET_TRAILER (2)

Packet trailer size

Definition at line 30 of file YmodemDef.h.

◆ SOH

#define SOH (0x01)

start of 128-byte data packet

Definition at line 36 of file YmodemDef.h.

◆ STX

#define STX (0x02)

start of 1024-byte data packet

Definition at line 37 of file YmodemDef.h.

◆ YM_MAX_FILESIZE

#define YM_MAX_FILESIZE (10 * 1024 * 1024)

Maximum file size allowed

Definition at line 50 of file YmodemDef.h.

◆ YMODEM_LED_ACT

#define YMODEM_LED_ACT 0

GPIO pin number for activity LED, set to 0 if you dont have LED

Definition at line 23 of file YmodemDef.h.

◆ YMODEM_LED_ACT_ON

#define YMODEM_LED_ACT_ON 1

LED ON state, 1 for active high, 0 for active low

Definition at line 24 of file YmodemDef.h.
