Ymodem Packet reception functions. More...

#include "YmodemUtils.h"

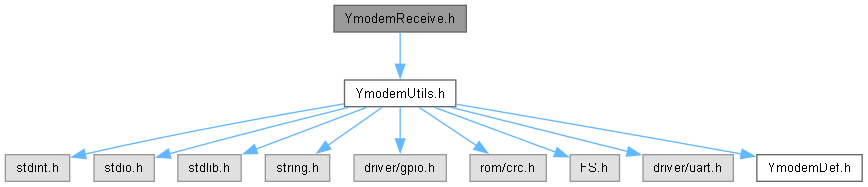

Include dependency graph for YmodemReceive.h:

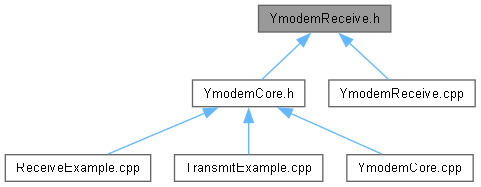

This graph shows which files directly or indirectly include this file:

Functions
int	processDataPacket (uint8_t packet_data, int packet_length, fs::File &ffd, unsigned int file_size, unsigned int errors)
	Processes a data packet received via Ymodem protocol.

void	handleEOFPacket (unsigned int file_done, unsigned int errors)
	Handles the End Of File (EOF) packet in the Ymodem protocol.

void	extractFileInfo (uint8_t packet_data, char getname, int *size)
	Extracts file information from a Ymodem packet.

int	processHeaderPacket (uint8_t packet_data, int packet_length, unsigned int maxsize, char getname, int size, unsigned int errors)
	Processes the header packet of a Ymodem transfer.

int	processPacket (uint8_t packet_data, int packet_length, fs::File &ffd, unsigned int maxsize, char getname, unsigned int packets_received, int size, unsigned int file_done, unsigned int *errors)
	Processes a received Ymodem packet.

int	handleFileSession (fs::File &ffd, unsigned int maxsize, char getname, unsigned int session_done, unsigned int *errors)
	Handles a file session for receiving data.

Detailed Description

Ymodem Packet reception functions.

Author: Miguel Ferrer (mferr.nosp@m.er@i.nosp@m.nbiot.nosp@m..es)

Version: 0.1

Date: 2025-01-24

This file contains the functions to receive files using the Ymodem protocol. It processes the incoming packets, extracts the file information, and writes the data to the filesystem.

Copyright: Copyright (c) 2025

Definition in file YmodemReceive.h.

Function Documentation

◆ extractFileInfo()

void extractFileInfo	(	uint8_t *	packet_data,
		char *	getname,
		int *	size )

Extracts file information from a Ymodem packet.

This function parses the given packet data to extract the file name and size.

Parameters

packet_data	Pointer to the packet data containing the file information.
getname	Pointer to a character array where the extracted file name will be stored.
size	Pointer to an integer where the extracted file size will be stored.

Definition at line 54 of file YmodemReceive.cpp.

◆ handleEOFPacket()

void handleEOFPacket	(	unsigned int *	file_done,
		unsigned int *	errors )

Handles the End Of File (EOF) packet in the Ymodem protocol.

This function processes the EOF packet received during a Ymodem file transfer. It updates the status of the file transfer and tracks any errors encountered.

Parameters

file_done	Pointer to an unsigned int that indicates whether the file transfer is complete. A non-zero value indicates completion.
errors	Pointer to an unsigned int that tracks the number of errors encountered during the transfer.

Definition at line 40 of file YmodemReceive.cpp.

◆ handleFileSession()

int handleFileSession	(	fs::File &	ffd,
		unsigned int	maxsize,
		char *	getname,
		unsigned int *	session_done,
		unsigned int *	errors )

Handles a file session for receiving data.

Parameters

ffd	Reference to the file object where the received data will be stored.
maxsize	Maximum size of the file to be received.
getname	Pointer to a character array where the name of the received file will be stored.
session_done	Pointer to an unsigned int that will be set to 1 if the session is completed successfully, 0 otherwise.
errors	Pointer to an unsigned int that will be incremented if any errors occur during the session.

Returns: int Status code indicating the result of the file session handling.

Definition at line 144 of file YmodemReceive.cpp.

◆ processDataPacket()

int processDataPacket	(	uint8_t *	packet_data,
		int	packet_length,
		fs::File &	ffd,
		unsigned int	file_size,
		unsigned int *	errors )

Processes a data packet received via Ymodem protocol.

This function handles the data packet, writing its contents to the specified file, and updating the error count if any issues are encountered.

Parameters

packet_data	Pointer to the data packet to be processed.
packet_length	Length of the data packet.
ffd	Reference to the file object where the data will be written.
file_size	Total size of the file being received.
errors	Pointer to an unsigned int where the error count will be updated.

Returns: int Status code indicating success or failure of the packet processing.

Definition at line 17 of file YmodemReceive.cpp.

◆ processHeaderPacket()

int processHeaderPacket	(	uint8_t *	packet_data,
		int	packet_length,
		unsigned int	maxsize,
		char *	getname,
		int *	size,
		unsigned int *	errors )

Processes the header packet of a Ymodem transfer.

This function extracts information from the header packet, such as the file name and size, and performs validation checks.

Parameters

packet_data	Pointer to the packet data.
packet_length	Length of the packet data.
maxsize	Maximum allowed size for the file.
getname	Pointer to a buffer where the file name will be stored.
size	Pointer to an integer where the file size will be stored.
errors	Pointer to an unsigned integer where the error count will be stored.

Returns: int Returns 0 on success, or a negative error code on failure.

Definition at line 92 of file YmodemReceive.cpp.

◆ processPacket()

int processPacket	(	uint8_t *	packet_data,
		int	packet_length,
		fs::File &	ffd,
		unsigned int	maxsize,
		char *	getname,
		unsigned int	packets_received,
		int *	size,
		unsigned int *	file_done,
		unsigned int *	errors )

Processes a received Ymodem packet.

This function handles the processing of a Ymodem packet, including writing data to a file, managing packet counts, and handling errors.

Parameters

packet_data	Pointer to the data of the received packet.
packet_length	Length of the received packet.
ffd	Reference to the file object where data will be written.
maxsize	Maximum allowed size of the file.
getname	Pointer to a buffer where the filename will be stored.
packets_received	Number of packets received so far.
size	Pointer to an integer where the size of the file will be stored.
file_done	Pointer to an unsigned integer that indicates if the file transfer is complete.
errors	Pointer to an unsigned integer that counts the number of errors encountered.

Returns: An integer indicating the status of the packet processing. 0 indicates success, while non-zero values indicate different error conditions.

Definition at line 114 of file YmodemReceive.cpp.
